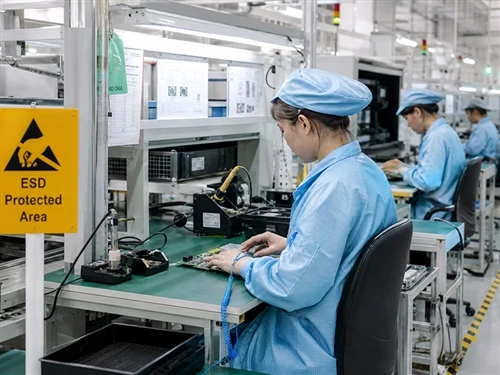

ESD Protection Solution for PCBA Mass Production Workshop

Key Takeaways

• ESD protection in PCBA workshops is not optional safety theater - electrostatic discharge is responsible for an estimated 8–33% of all electronic component failures in mass production environments, with the majority of damage being latent (not immediately visible) and discovered only after customer delivery.
• The cost of a single ESD event is rarely just the damaged component. In a PCBA workshop running 50,000 boards per month, one uncontrolled ESD source can corrupt an entire production batch before the root cause is identified - making real-time monitoring at every workstation the only defensible standard.
• IEC 61340-5-1 is the international benchmark governing ESD control in electronics manufacturing. Facilities certified to this standard reduce ESD-related field failures by 40–60% compared to uncertified environments (Source: ESD Association technical report, 2024).
• Surface mount components - particularly BGA packages, MOSFETs, GaN transistors, and RF modules - are susceptible to ESD damage at voltage thresholds as low as 100V, well below the human perception threshold of approximately 3,000V, meaning workers cause damage they cannot feel, see, or detect without instrumentation.
• A complete ESD protection solution for PCBA mass production covers five layers: personnel grounding, workstation control, material handling protocols, environment monitoring, and outgoing verification - and requires all five to function simultaneously to be effective.

---

Core Opening Definition

ESD protection in a PCBA workshop is a system, not a product.

This distinction is where most facilities get it wrong. A purchasing manager sources ESD wrist straps, ESD mats, and antistatic bags. A quality manager checks a compliance box. Three months later, field return data shows 12% of a specific component failing at exactly the same location on the board - a pattern consistent with latent ESD stress, not design defect or process variance.

The gap between those two scenarios is the gap between ESD compliance and ESD control.

ESD protection for PCBA - in the sense that matters operationally - is the systematic management of electrostatic charge generation, accumulation, and discharge across every surface, person, material, and environment that comes into contact with electrostatic discharge sensitive (ESDS) components from incoming goods receipt through final packaging.

The problem is invisible. Human skin can generate 35,000V of static electricity when walking across a carpeted floor. A person in a controlled manufacturing environment, moving across a coated floor in ESD footwear, still generates 500–1,000V through normal motion. The MOSFET gate oxide in a 48V automotive control board breaks down at 200V. The gap between what workers routinely generate and what components can withstand is not theoretical - it is the working environment of every PCBA mass production workshop that lacks a properly implemented ESD control program.



Three numbers that define ESD risk in electronics manufacturing:

• 8–33%: Estimated share of electronic component failures attributable to ESD in production environments (ESD Association, 2024)
• 100V: ESD damage threshold for the most sensitive modern semiconductors - below human sensory detection
• $5.5 billion: Estimated annual global cost of ESD-related damage in electronics manufacturing (ESD Association industry survey, 2023)



Core Pain Points for PCBA Buyers Evaluating Supplier ESD Capability

Procurement managers and quality engineers sourcing PCBA from China factories routinely encounter the same ESD-related failure patterns. Understanding these pain points is the starting point for evaluating whether a supplier's ESD protection system is real or performative.



Latent damage discovered after delivery. The most commercially damaging ESD failure mode is not visible at final inspection. Latent damage - where a component is partially degraded but passes electrical test - surfaces as early field failures at the customer level. A buyer receives 10,000 boards, all passing AOI and ICT. Four months later, 8% of deployed units are returned with failures concentrated in the power regulation circuit. Root cause analysis identifies ESD stress during production as the probable cause. By this point, the supplier relationship, the product launch, and the brand reputation are already affected.

No real-time wrist strap monitoring. The most common ESD protection gap in PCBA workshops is static wrist strap monitoring that is periodic rather than continuous. A worker checks the strap at shift start. The strap develops a coaxial cable failure - a common failure mode - midway through the shift. For the remaining four hours, the worker is ungrounded and generating static charge with every movement at a workstation handling bare SMD components. Continuous monitoring systems that alarm on break detection are the standard in IEC 61340-5-1 certified facilities. Periodic testing is not.

ESD flooring and workbench mats without verified grounding. Many facilities install ESD-dissipative flooring and mat systems as visible compliance signals. The critical failure point: the ground connection. A dissipative mat with a resistance of 10^6 to 10^9 ohms between surface and ground point is effective. A mat with the same surface resistance but a disconnected or corroded ground wire provides zero ESD protection - and will pass a surface resistance test while failing completely at the system level.

Packaging-to-shipping ESD gap. Components and assembled boards that are properly handled through the production process can be damaged during the packaging and shipping preparation stage if that area is not incorporated into the EPA (ESD Protected Area). Uncontrolled static events during packaging represent the final failure point in an otherwise controlled production flow.

Inadequate documentation for buyer audits. Buyers in aerospace, automotive, medical device, and defense electronics increasingly require ESD control certification evidence as a supplier qualification criterion. Facilities without documented monitoring records, calibration certificates for wrist strap testers, periodic compliance audits, and material traceability to antistatic packaging standards cannot pass these audits - regardless of the actual effectiveness of their floor-level practices.

High component value + high ESD sensitivity combinations. Modern PCBA designs increasingly incorporate GaN power semiconductors, high-speed SiGe RF components, and ultra-thin-gate-oxide logic ICs - components with ESD thresholds below 200V and per-unit costs of $15–$80. A single ESD event on one of these components during production represents a direct material loss that dwarfs the cost of the monitoring equipment that would have prevented it.



Why ESD Control Capability Matters When Selecting a PCBA Manufacturer

The commercial logic is direct: ESD protection quality at the factory determines field reliability of the finished product at the buyer's customer.

This is not a quality philosophy statement. It is a cost allocation reality. ESD-related field failures generate warranty claims, replacement shipments, customer service costs, and brand reputation damage - all of which are borne by the buyer, not the contract manufacturer, unless the defect is caught and attributed during the warranty claim window. Most ESD damage is not attributable after deployment because latent failures manifest as generic component failures indistinguishable from end-of-life wear-out without detailed failure analysis.



Five commercial reasons why ESD protection in PCBA workshop environments is a supplier selection criterion:

• Warranty cost reduction. Every percentage point reduction in ESD-related field failure rate translates directly to reduced warranty provision. For a buyer shipping 500,000 consumer electronics units annually, moving from a 3% to a 1.5% ESD-attributable failure rate saves approximately $225,000 in warranty costs at a $30 average replacement cost.
• First-pass yield improvement. ESD damage that is caught at ICT or functional test - rather than discovered in the field - reduces first-pass yield and increases rework costs. Strong ESD control programs consistently achieve 2–5% higher first-pass yield rates compared to baseline environments in the same component complexity tier.
• Regulatory compliance enablement. Medical device PCBA (IEC 60601), automotive electronics (AEC-Q100/Q200), and aerospace components (AS9100) all carry embedded ESD control requirements. A supplier certified to IEC 61340-5-1 provides the documentary evidence these compliance chains require without additional audit burden.
• Component cost protection. As semiconductor packaging migrates toward finer geometries and thinner gate oxides, ESD sensitivity thresholds decrease and component unit costs increase. The economic argument for ESD investment strengthens as component bills of materials shift toward high-value, high-sensitivity parts.
• Supplier audit pass rates. Enterprise electronics buyers - particularly OEM clients in automotive and industrial automation - conduct annual supplier audits that include ESD control as a scored category. Facilities with documented, monitored ESD control programs consistently score higher, reducing audit remediation cycles and associated project delays.



Tecoo's ESD Protection System for Mass Production PCBA

Tecoo's PCBA workshop operates a five-layer ESD protection system that exceeds IEC 61340-5-1 requirements across all production zones - from incoming component receipt through final packaging and outgoing inspection.



Layer 1 - Personnel Grounding and Continuous Monitoring

Every operator and technician entering the EPA (ESD Protected Area) wears a dual-wire wrist strap connected to a continuous monitoring system. The monitoring system performs real-time resistance measurement across both conductors simultaneously. Any wrist strap resistance exceedance or cable break triggers an immediate visual and audible alarm at the workstation and a notification to the quality monitoring dashboard. Periodic strap testing alone is not used as the primary verification method.

ESD-rated heel grounders and full ESD footwear are required in all SMT and DIP assembly zones. Floor resistance is verified monthly against IEC 61340-5-1 limits using calibrated instrumentation, with records maintained for buyer audit access.



Layer 2 - Workstation and Surface Control

All assembly workbenches use two-layer ESD dissipative mat systems with dual grounding connections - a primary and backup ground path - to eliminate single-point grounding failure risk. Surface resistance is tested at workstation setup and after any mat replacement or repositioning.



Soldering stations, component feeders, PCB conveyors, and all metal fixtures within the EPA are bonded to the common ground point. No isolated conductors - including component reel spindles, solder paste dispensing equipment, and optical inspection fixtures - are permitted within the EPA without verified bonding.



Layer 3 - Material Handling and Packaging Protocol

All incoming ESDS components are received in manufacturer-approved ESD shielding bags or trays. Incoming inspection personnel operate within a designated EPA with continuous wrist strap monitoring. Components are transferred from shipping packaging to ESD storage trays without ever leaving the controlled environment.

Work-in-progress boards are transported between production stages in ESD-shielding containers with rigid-lid protection. No bare board surfaces are exposed to open air in non-EPA zones during transport.

Final packaged assemblies are sealed in ESD shielding bags meeting IEC 61340-5-26 specifications - verified by bag resistance testing and marked with ESD-sensitive handling symbols per IEC 60417. Humidity indicator cards are included in moisture-sensitive device packaging per IPC/JEDEC J-STD-033.





Layer 4 - Environment Monitoring

Relative humidity in all EPA zones is maintained at 40–60% RH - the range that provides sufficient ionization to prevent charge accumulation without introducing condensation risk. Temperature and humidity data logging runs continuously, with automated alerts when readings approach threshold limits.

Ionizers (air ionization blowers and overhead ionizing bars) are deployed at all component placement zones, soldering areas, and inspection stations where grounding alone cannot fully control triboelectric charging. Ionizer balance and output are tested monthly using a calibrated charged plate monitor.





Layer 5 - Outgoing Verification and Documentation

Before shipment, a sample of assembled boards from each production batch undergoes ESD audit inspection - a secondary check that confirms packaging integrity, labeling compliance, and absence of physical handling damage attributable to improper ESD procedures.

Complete ESD control records - wrist strap monitoring logs, floor resistance test records, ionizer calibration certificates, humidity charts, and incoming component traceability to ESD packaging - are maintained per production lot and available for buyer download in PDF format within 24 hours of shipment.



ESD Protection Capability Comparison: What to Look for in a PCBA Supplier

Capability Area	Basic Compliance	Industry Standard	Tecoo Implementation
Personnel Monitoring	Periodic manual testing	Continuous dual-wire monitoring	Real-time dashboard + station alarm
EPA Zone Definition	Assembly area only	Full production floor	Incoming goods → final packaging
Flooring Verification	ESD dissipative tiles	Verified grounding with test records	Monthly calibrated resistance testing
Ionization	Zone-specific blowers	Full coverage + balance testing	Monthly charged plate monitor calibration
Packaging Standard	Antistatic bag (pink poly)	ESD shielding bag (IEC 61340-5-26)	Shielding bag + resistance test + HIC
Documentation	Checklist on file	Lot-level records	Buyer-downloadable audit trail per lot
Certification	None	IPC-A-610 awareness	IEC 61340-5-1 compliant program
Sensitivity Mapping	Generic ESDS label	HBM/CDM classification on BOM	Sensitivity class mapped per component



ESD Protection Standards Reference for PCBA Mass Production

Understanding the applicable standards allows buyers to ask precise questions during supplier qualification and interpret audit results accurately.



IEC 61340-5-1 - the primary international standard for ESD control in electronics manufacturing. Covers EPA requirements, grounding, personnel protection, packaging, and program management. Certification to this standard is the benchmark for enterprise electronics supply chains.
IEC 61340-5-2 - user guide complementary to IEC 61340-5-1. Provides implementation guidance for the control program requirements defined in 5-1.
ANSI/ESD S20.20 - the American equivalent, widely required by US defense, aerospace, and medical device buyers. Aligned with IEC 61340-5-1 but with US regulatory framing.
IPC-A-610 - the acceptability standard for electronic assemblies, which includes ESD handling requirements as part of workmanship criteria.
IEC 61340-5-26 - packaging material standard for ESD shielding bags and flexible packaging used for ESDS components and assemblies.
AEC-Q100 / AEC-Q200 - automotive component qualification standards that carry embedded ESD classification requirements (HBM, CDM) for all qualified components.
HBM (Human Body Model) - the most widely referenced ESD sensitivity classification, modeling discharge from a charged human body. HBM Class 1A = 250V threshold; increasingly common in modern semiconductors.
CDM (Charged Device Model) - models discharge from a charged component contacting a grounded surface. CDM sensitivity thresholds are typically lower than HBM and more relevant to high-speed automated handling environments.



Frequently Asked Questions: ESD Protection in PCBA Workshop

1. What is the difference between antistatic and ESD shielding packaging?
Antistatic (pink polyethylene) packaging dissipates surface charge but provides no protection against external electrostatic fields - components inside an antistatic bag can still be affected by nearby charge sources. ESD shielding bags (the metallized type) attenuate external fields by creating a Faraday cage effect. For ESDS components and assemblies, shielding bags meeting IEC 61340-5-26 are the correct specification. Antistatic bags are appropriate only for low-sensitivity components or outer protective layers.

2. How do I verify that a PCBA supplier's ESD program is effective rather than performative?
Request three specific documents: (1) the most recent wrist strap monitoring log for one production shift, showing continuous resistance readings rather than a single pass/fail result; (2) the most recent floor resistance test records with measurement locations mapped to the factory layout; (3) the ionizer calibration certificate dated within the past three months. Suppliers with real programs can provide these within 24 hours. Suppliers with compliance theater cannot.

3. What ESD sensitivity class are typical SMT components in a consumer electronics PCBA?
Most modern SMD components fall in HBM Class 1A (100–250V) or Class 1B (250–500V). BGA packages, GaN transistors, RF amplifiers, and thin-gate CMOS logic are predominantly Class 1A. Standard passives (resistors, capacitors, inductors) are generally not ESDS. A properly implemented ESD program treats all active components as Class 1A by default unless component-specific qualification data confirms a higher threshold.

4. What humidity level should a PCBA workshop maintain for ESD control?
IEC 61340-5-1 recommends 40–60% relative humidity as the operational range for ESD control effectiveness. Below 30% RH, triboelectric charge generation increases significantly and ionizers cannot compensate fully. Above 70% RH, condensation risk affects solderability and component moisture sensitivity classifications. In climates where maintaining this range requires HVAC investment, ionization systems provide a partial compensatory measure but do not replace humidity control as the primary environmental parameter.



5. Can ESD damage be detected at final inspection?
Hard ESD damage - where the component has fully failed - is detectable at in-circuit test (ICT) or functional test. Latent ESD damage - where the component is partially degraded but still passes electrical tests - is not reliably detectable by standard production inspection methods. This is why prevention at the source is the only effective strategy: post-production detection cannot identify latent failures before delivery.



6. What should I include in a supplier ESD audit checklist?
A practical audit checklist for ESD protection PCBA suppliers includes: EPA boundary definition and signage, wrist strap monitoring method (continuous vs. periodic), floor and mat resistance test records, ionizer type and calibration frequency, packaging material specification and verification, component sensitivity classification records, and personnel training records. ISO/IEC 61340-5-1 Annex A provides the normative checklist used by certification bodies.



Summary: ESD Protection as a Production Quality Foundation

ESD control in a PCBA workshop is not a compliance formality that exists to satisfy audit requirements. It is the production quality foundation that determines whether the components you specified arrive at the end customer performing as designed - or arrive with degraded reliability margins that will fail in the field at unpredictable rates.

The economics are clear: the cost of a comprehensive ESD protection system in a mass production environment - continuous monitoring, proper flooring and workbench systems, ionization coverage, shielding packaging, and documentation - represents less than 0.5% of direct production cost for a facility running at scale. The cost of ESD-attributable field failures at the buyer level is 40–200 times higher per affected unit when warranty, logistics, and brand impact are included.

Tecoo's ESD protection for PCBA mass production integrates all five control layers - personnel grounding, workstation control, material handling, environment monitoring, and outgoing verification - into a single documented program that generates buyer-accessible records for every production lot.

For buyers evaluating PCBA suppliers: ESD control capability is a supplier selection criterion with direct economic consequences. The right question is not whether a supplier has ESD procedures. The right question is whether those procedures are continuously monitored, documented at the lot level, and independently verifiable.



---
