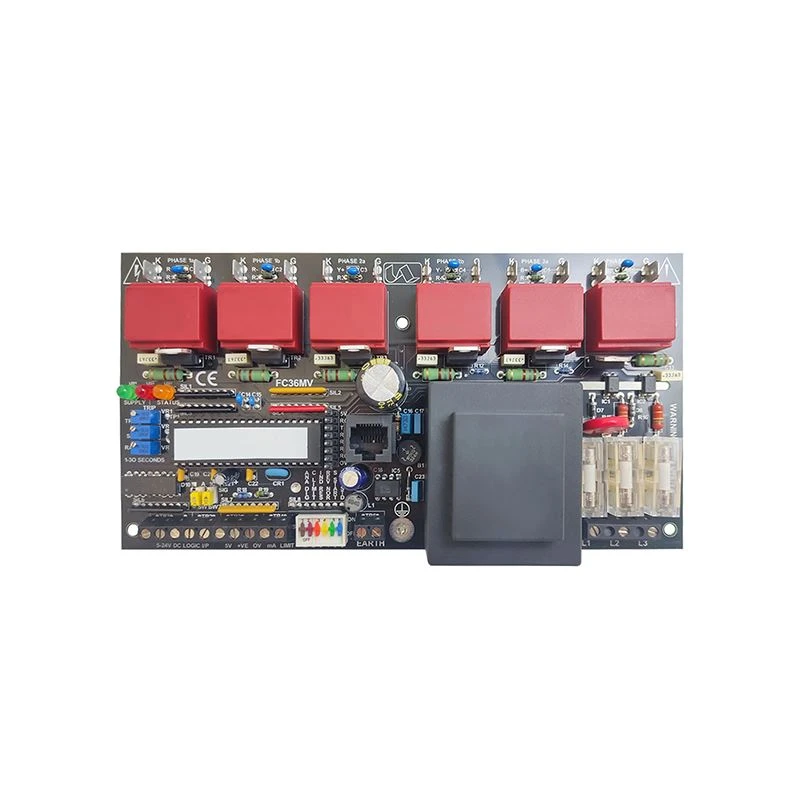

Air Compressors PCB Assembly Service
TECOO builds compressor control and inverter drive boards to customer Gerber and BOM, covering air, refrigeration and HVAC compressors from 0.75 kW to 75 kW. Scope includes the inverter power board, main control board, sensor I/O board, HMI board and communication board, plus IPM and IGBT module assembly, firmware flashing, motor-load testing and export packing. 24+ years in electronics manufacturing, serving B2B clients in Southeast Asia, Africa, the Middle East, Europe and Latin America.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
NOTICE TO BUYERS:
We are a Professional Electronics Contract Manufacturer (EMS). We do NOT sell retail or off-the-shelf ready-to-ship replacement boards. All products shown are custom manufacturing cases protected by client NDA. To get a formal quotation within 24 hours, please provide:
- Gerber Files (RS-274X)
- Complete BOM List (with manufacturer part numbers)
- Estimated Order Volume (Prototype or Mass Production)
Board Set Scope
| Board | Function |
|---|---|
| Inverter drive power board | Rectifier, PFC, IPM / IGBT three-phase bridge, DC bus, shunt current sensing |
| Main control board | Motor control loop, compressor sequencing, protection logic, parameter storage |
| Sensor I/O board | NTC / PT100 / PT1000, 4–20 mA pressure transducer, 0–10 V analog, digital inputs |
| HMI & display board | LCD or LED display, keypad, fault codes, buzzer |
| Communication board | RS485 Modbus RTU, CAN 2.0B, gateway interface |
Technical Parameters
| Item | Range |
|---|---|
| Input voltage | 220 / 230 VAC single phase; 380 / 400 / 415 / 460 / 480 VAC three phase |
| Motor power | 0.75 – 75 kW |
| Output frequency | 0 – 400 Hz |
| Switching frequency | 4 – 16 kHz |
| Power device | IPM, IGBT module, discrete IGBT; SiC option |
| PCB layers | 2 – 8 layers; drive board 4 – 6 typical |
| Copper weight | 2 – 6 oz on drive and busbar areas |
| Min. trace / space | 4/4 mil control; 8/8 mil and above on mains and motor output |
| Isolation | Reinforced primary-to-secondary, hipot tested per design |
| Sensor accuracy | Calibrated at board level for pressure and temperature channels |
| Surface finish | ENIG, HASL-LF, OSP |
| Assembly | SMT down to 0402, selective solder, press-fit, screw terminals, busbar |
| Test |
ICT, motor-load run-in, hipot, insulation resistance, thermal cycling |
Materials & Process
- FR-4 Tg 170 °C, CTI 600 V for the mains and motor output section
- Aluminum or metal-core substrate where the IPM or rectifier heat spread requires it
- 2 – 6 oz copper, copper-inlay and solder-filled vias for bus and motor current paths
- Thermal pad footprints, torque-specified IPM mounting, TIM application, heatsink clearance
- Potting for pressure sensor and humid-area circuitry; selective conformal coating elsewhere
- 300 / 600 V rated terminal blocks, film capacitors, DC bus electrolytics with vent space
- Components from authorized channels, MPN-verified against BOM
Applications
- Piston, scroll and screw air compressors, including variable-speed models
- Refrigeration condensing units, cold room and transport refrigeration
- HVAC chillers, heat pumps and rooftop units
- Vacuum pumps and industrial blowers
- Medical and dental air systems requiring low-noise variable speed control
FAQ
1. Do you supply bare boards or complete controller assemblies?
Both. We build the board set, and can add heatsink, harness, terminal and enclosure assembly as a box-build step.
2. Can you flash firmware and keep version traceability?
Yes. We flash your binary, record the firmware version against the board serial number, and report the version used per shipment.
3. How is a compressor drive board tested?
ICT first, then motor-load run-in across the output frequency range, plus hipot, insulation resistance and thermal cycling before packing.
4. Can you mount IPM and IGBT modules with heatsinks?
Yes, including press-fit, torque-specified screw mounting and TIM application, with X-ray inspection of the joints.
5. Can you reproduce a legacy compressor controller from a physical sample?
Yes, under NDA and with your written confirmation that you own or are licensed to the design. Deliverables: Gerber, schematic, BOM.
Send us Gerber, BOM and target volume - engineering review and formal quotation within 24 hours, including tooling, unit price, lead time and test plan.
