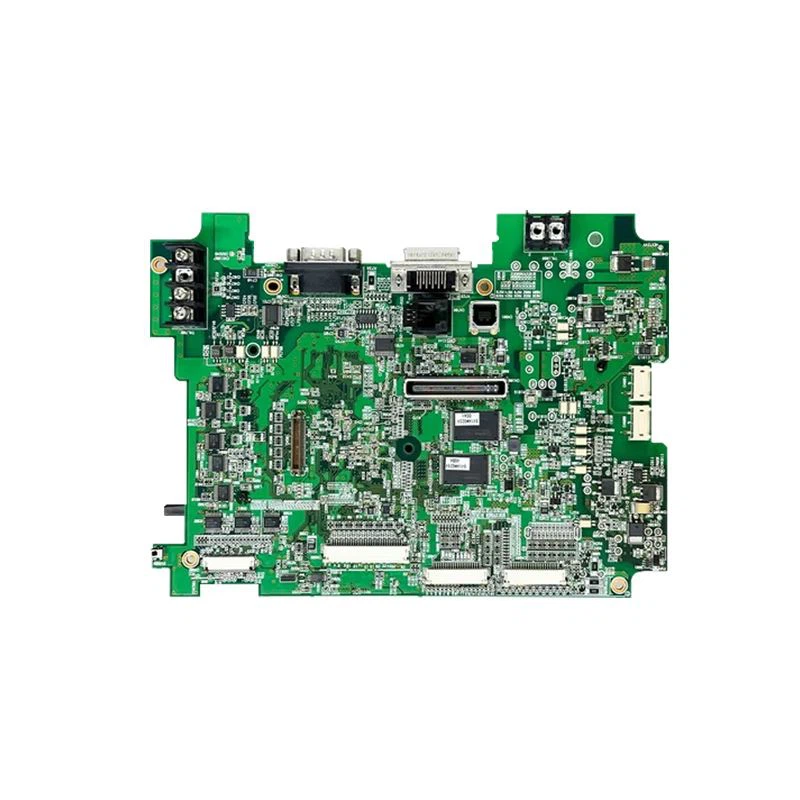

High-Precision Oscilloscope Circuit Board For Accurate Signal Measurement
Designed for professional electronics testing and analysis, our high-precision oscilloscope circuit board delivers exceptional signal measurement accuracy with advanced processing capabilities. Engineered to meet rigorous performance standards, this board features ultra-low noise design, wide bandwidth support, and high-speed data acquisition for capturing and analyzing complex waveforms with outstanding clarity and reliability.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Key Features:
• High-Fidelity Signal Processing
1GHz+ bandwidth for detailed waveform capture
12-bit ADC resolution with 5GS/s sampling rate
Ultra-low noise floor (<1mV RMS) for precise measurements
• Advanced Triggering System
Multi-level edge/pulse/pattern triggering
<100ps timing resolution
Automatic waveform capture and hold
• Measurement Accuracy
±0.5% vertical measurement accuracy
<1% horizontal timing accuracy
32-bit floating-point DSP processing
Technical Specifications:
Input Impedance: 1MΩ±1% || 15pF
Maximum Input Voltage: 400V (CAT II)
Memory Depth: 256Mpts/channel (expandable)
Interface: USB 3.0, Gigabit Ethernet, HDMI
Applications:
✓ Electronics R&D laboratories
✓ Industrial equipment diagnostics
✓ Telecommunications testing
✓ Power electronics analysis
Quality Assurance:
MIL-STD-202G vibration tested
100% automated calibration verification
RoHS/REACH compliant
